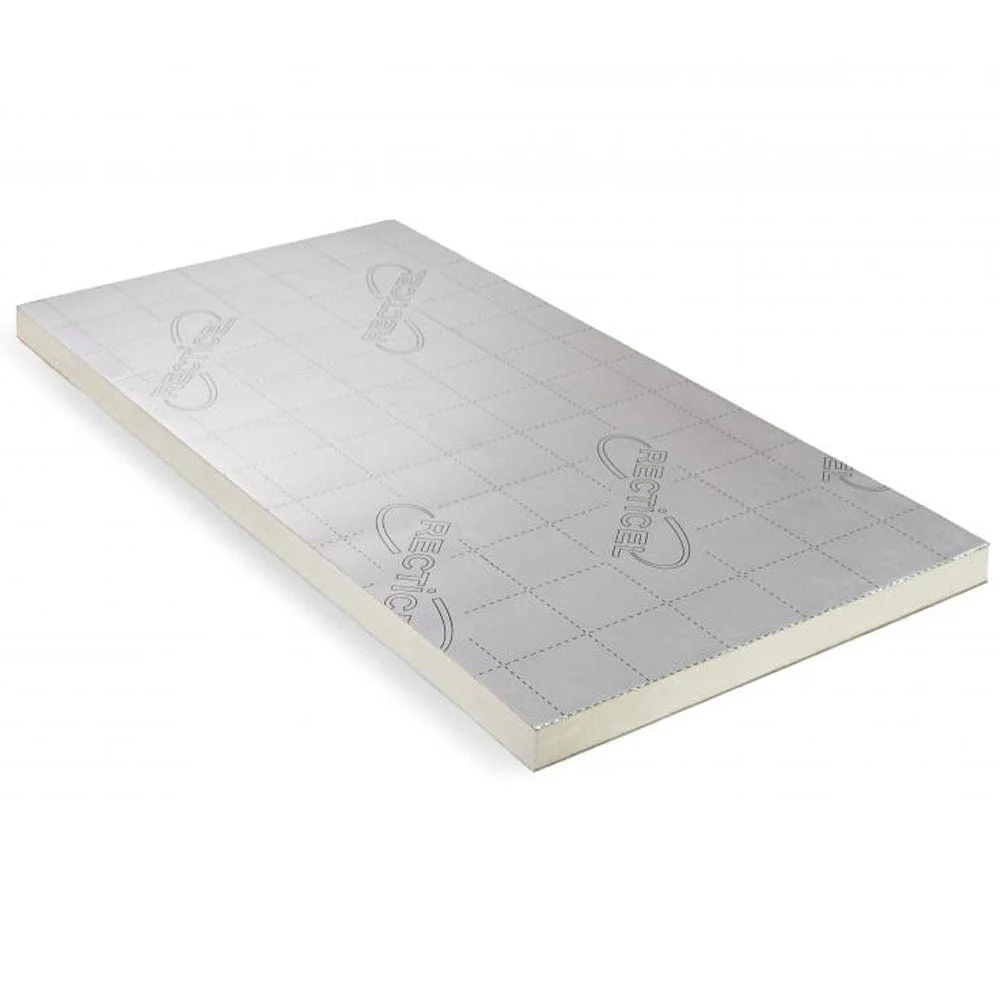

130mm Recticel Eurothane GP PIR Insulation Board 2.4m x 1.2m - 2.88m2 per sheet
130mm Recticel Eurothane GP sits towards the top of the general purpose range, a rigid polyisocyanurate (PIR) board with a closed-cell core and a gas diffusion tight, low-emissivity foil facing on both sides. It is made for pitched roofs, timber and metal framed walls, and floors, including those running underfloor heating, where a project needs high thermal performance from a single layer.
Each 2400mm x 1200mm board covers 2.88m² and is supplied as a single sheet. At 130mm it carries a declared thermal resistance (R-value) of 5.90 m²K/W from a declared thermal conductivity of 0.022 W/mK, close to the ceiling of what one Eurothane GP board delivers and well suited to refurbishment and roof build-ups working to demanding U-values.
Laid in a tightly butted, brick-bond pattern with taped joints, the straight edges keep the insulation layer continuous and limit thermal bridging, and the printed grid guides accurate cuts. The low-emissivity foil facings support thermal performance against an adjacent air space, while the closed-cell core resists moisture and holds its shape for the life of the building.

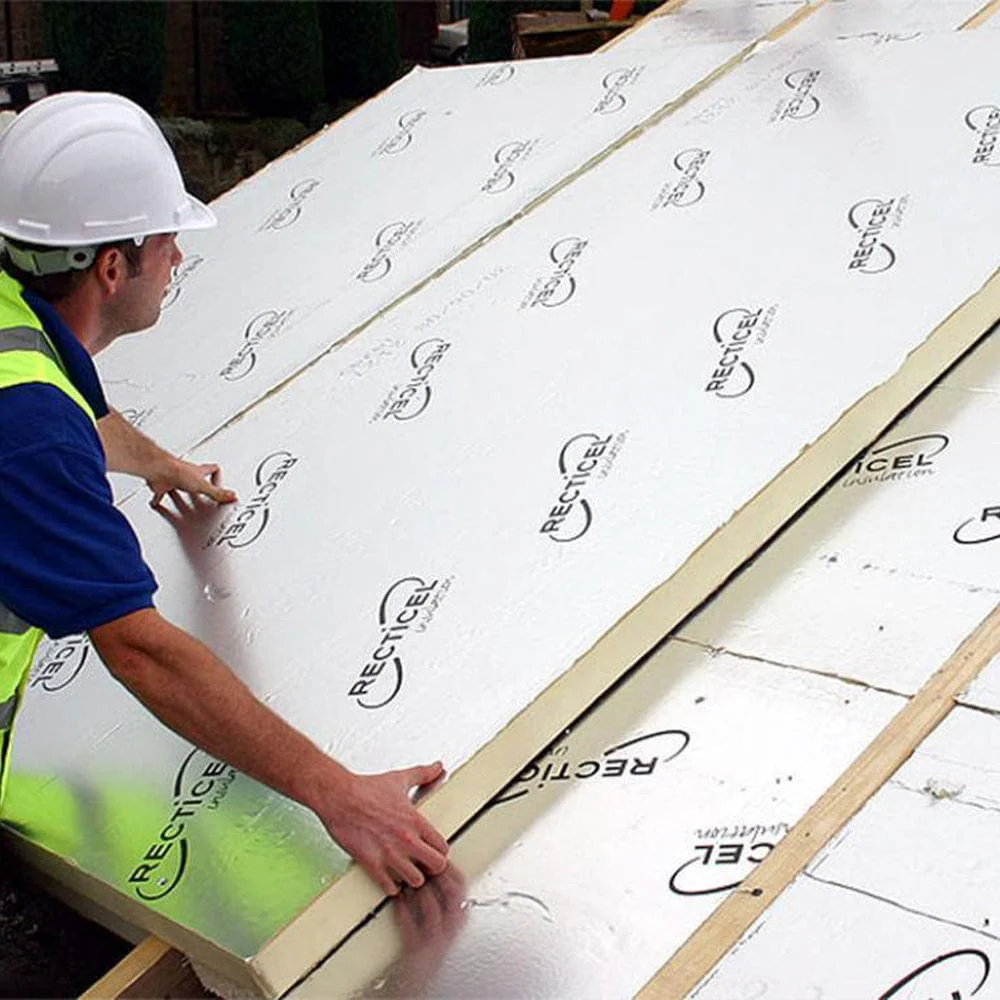

Across floors it is laid over a damp-proof membrane in solid and suspended construction and to upgrade existing slabs; in pitched roofs it goes between, over or below the rafters, including room-in-roof conversions; in framed walls it fits between the studs or as a continuous lining, and it can line solid masonry internally. For the deepest requirements, two boards can be combined with staggered joints. Fit it in line with current Recticel technical guidance and the project specification, and finish internal walls with plasterboard rather than plaster or paint applied directly. On new build and refurbishment alike, 130mm Eurothane GP brings high single-layer performance from a board that stays easy to handle and cut.
Key Benefits of 130mm Recticel Eurothane GP:
- Rigid PIR insulation board for pitched roofs, framed walls and floors, including underfloor heating build-ups.
- Declared R-value (thermal resistance) of 5.90 m²K/W at 130mm, near the top of the GP range.
- Declared thermal conductivity of 0.022 W/mK for high single-layer thermal performance.
- Straight edges that butt tightly in a brick-bond pattern to keep joints closed and limit thermal bridging.
- Gas diffusion tight, low-emissivity foil facings on both sides, with a printed grid to guide cutting.
- Closed-cell PIR core that resists moisture and stays dimensionally stable.
- Compressive strength of at least 120 kPa, supporting use within floor build-ups (check the full system requirements).
- Doubles up cleanly in two staggered layers where the deepest build-ups are required.
- Lightweight for its thickness and easy to cut with a sharp knife or insulation saw.
- Manufactured with blowing agents that have zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).
- Supplied as a single 2400mm x 1200mm board covering 2.88m².
Good to know:
- Although the closed-cell core is moisture resistant, PIR is not waterproof: store boards flat, dry, off the ground and out of direct sunlight, and avoid point loads or walking on stacked boards.
- A standard board is 2.4m x 1.2m, giving 2.88m² coverage per board.
- For deeper build-ups, install two layers with staggered, tightly butted joints (thicker layer outermost) and tape the joints.
- Bespoke cutting is available, find out more here.
- Recticel's pitched roof and floor specification guides are useful references for rafter and floor build-ups.
Near the top of the general purpose range at a declared 5.90 m²K/W, 130mm Recticel Eurothane GP gives deep retrofits, warm roofs and upgraded floors high single-layer performance from one easy-to-fit board.
